Parameter estimation by optimization
nohitter_times is an array with length of 251. array([ 843, 1613, 1101, 215, 684, 814,..])
# Seed random number generator
np.random.seed(42)
# Compute mean no-hitter time: tau
tau = np.mean(nohitter_times)
# Draw out of an exponential distribution with parame*ter tau: inter_nohitter_time
inter_nohitter_time = np.random.exponential(tau, 100000)

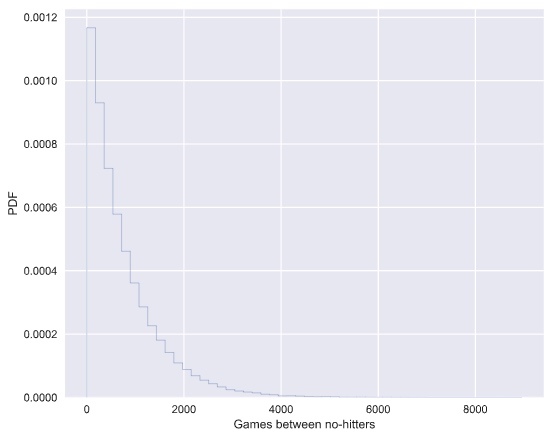

# Plot the PDF and label axes
_ = plt.hist(inter_nohitter_time,
bins=50, normed=True, histtype='step')
_ = plt.xlabel('Games between no-hitters')
_ = plt.ylabel('PDF')

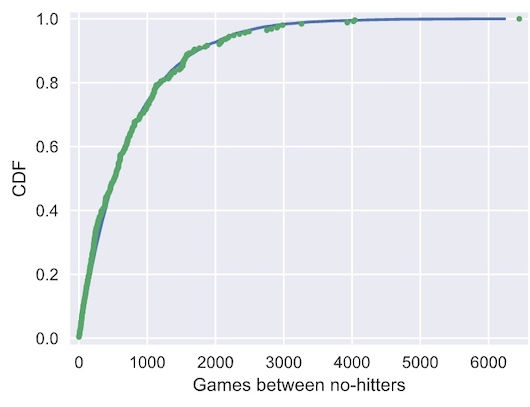

Check if the data nohitter_times is exponential distribution.
# Create an ECDF from real data: x, y
x, y = ecdf(nohitter_times)
# Create a CDF from theoretical samples: x_theor, y_theor
x_theor, y_theor = ecdf(inter_nohitter_time)
# Overlay the plots
plt.plot(x_theor,y_theor )
plt.plot(x, y, marker='.', linestyle='none')
# Margins and axis labels
plt.margins(0.02)
plt.xlabel('Games between no-hitters')
plt.ylabel('CDF')
# Show the plot
plt.show()
It looks like no-hitters in the modern era of Major League Baseball are Exponentially distributed. Based on the story of the Exponential distribution, this suggests that they are a random process; when a no-hitter will happen is independent of when the last no-hitter was.
How is the parameter optimal?

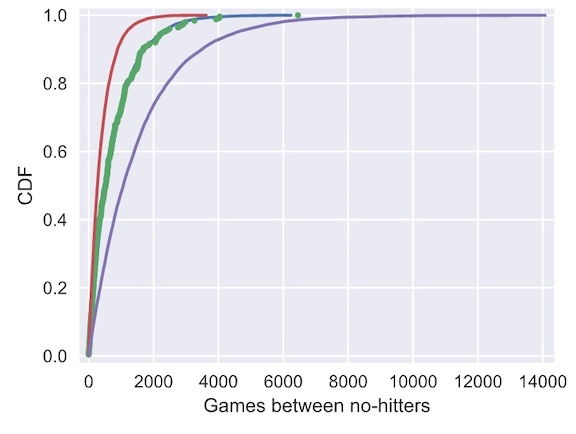

Plot the mean as 1/2 tau and 2 tau to see how they fit the data
# Plot the theoretical CDFs
plt.plot(x_theor, y_theor)
plt.plot(x, y, marker='.', linestyle='none')
plt.margins(0.02)
plt.xlabel('Games between no-hitters')
plt.ylabel('CDF')
# Take samples with half tau: samples_half
samples_half = np.random.exponential(tau/2, 10000)
# Take samples with double tau: samples_double
samples_double = np.random.exponential(tau*2, 10000)
# Generate CDFs from these samples
x_half, y_half = ecdf(samples_half)
x_double, y_double = ecdf(samples_double)
# Plot these CDFs as lines
_ = plt.plot(x_half, y_half)
_ = plt.plot(x_double, y_double)
# Show the plot
plt.show()
The value of tau given by the mean matches the data best. In this way, tau is an optimal parameter.

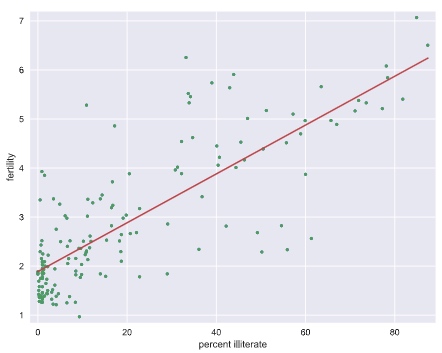

Fit a linear regression line to a scatter plot
illiteracy and fertility are two arrays of data that represent the illiteracy rate (%) and average number of children born per woman in each country. (array length 161)
# Plot the illiteracy rate versus fertility
_ = plt.plot(illiteracy, fertility, marker='.', linestyle='none')
plt.margins(0.02)
_ = plt.xlabel('percent illiterate')
_ = plt.ylabel('fertility')
# Perform a linear regression using np.polyfit(): a, b
a, b = np.polyfit(illiteracy, fertility, 1)
# Print the results to the screen
print('slope =', a, 'children per woman / percent illiterate')
print('intercept =', b, 'children per woman')
# Make theoretical line to plot
x = np.array([0,100])
y = x * a + b
# Add regression line to your plot
_ = plt.plot(x, y)
# Draw the plot
plt.show()
slope = 0.05 children per woman / percent illiterate intercept = 1.89 children per woman
How the slope is optimal?
- Specify the values of the slope to compute the RSS. Use
np.linspace()to get 200 points in the range between 0 and 0.1 - Initialize an array, rss, to contain the RSS using
np.empty_like()and the array you created above. Theempty_like()function returns a new array with the same shape and type as a given array (in this case,a_vals).
# Specify slopes to consider: a_vals
a_vals = np.linspace(0, 0.1, 200)
# Initialize sum of square of residuals: rss
rss = np.empty_like(a_vals)
# Compute sum of square of residuals for each value of a_vals
for i, a in enumerate(a_vals):
rss[i] = np.sum((fertility - a*illiteracy - b)**2)

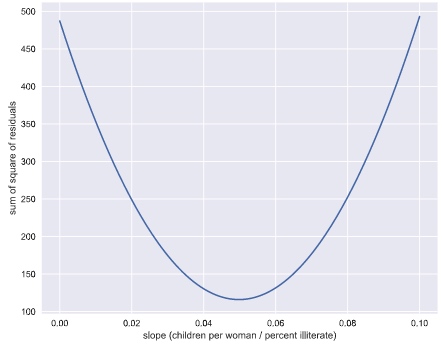

# Plot the RSS
plt.plot(a_vals, rss, '-')
plt.xlabel('slope (children per woman / percent illiterate)')
plt.ylabel('sum of square of residuals')
plt.show()
The minimum on the plot, that is the value of the slope that gives the minimum sum of the square of the residuals, is the same value you got when performing the regression.
Bootstrap confident intervals
bootstrap replicate: A single value of a statistic computed from a bootstrap sample.

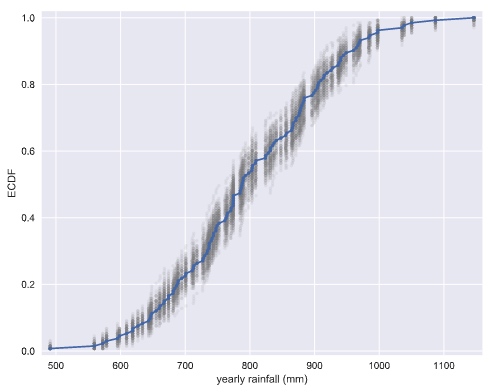

Visualize bootstrap
rainfall is a numpy array, annual rainfall data measured at the Sheffield Weather Station in the UK from 1883 to 2015.
1. Generate the bootstrap samples from the rainfall array and plot ecdf. Note the use of for _ in range(50)
2. Plot the ecdf of the original data
for _ in range(50):
# Generate bootstrap sample: bs_sample
bs_sample = np.random.choice(rainfall, size=len(rainfall))
# Compute and plot ECDF from bootstrap sample
x, y = ecdf(bs_sample)
_ = plt.plot(x, y, marker='.', linestyle='none',
color='gray', alpha=0.1)
# Compute and plot ECDF from original data
x, y = ecdf(rainfall)
_ = plt.plot(x, y, marker='.')
# Make margins and label axes
plt.margins(0.02)
_ = plt.xlabel('yearly rainfall (mm)')
_ = plt.ylabel('ECDF')
# Show the plot
plt.show()
the bootstrap samples give an idea of how the distribution of rainfalls is spread.
Confidence intervals
Confidence intervals: if we repeated measurements over and over again, p% of the observed values would lie within the p% confidence interval.
def bootstrap_replicate_1d(data, func):
"""Generate bootstrap replicate of 1D data.
input: 1D data, fuction name
output: the value calculated using the bootstrap sample and function
"""
bs_sample = np.random.choice(data, len(data))
return func(bs_sample)
Generating many bootstrap replicates (the statistics of the bootstrap sample)
def draw_bs_reps(data, func, size=1):
"""Draw bootstrap replicates."""
# Initialize array of replicates: bs_replicates
bs_replicates = np.empty(size)
# Generate replicates
for i in size:
bs_replicates[i] = bootstrap_replicate_1d(data, func)
return bs_replicates

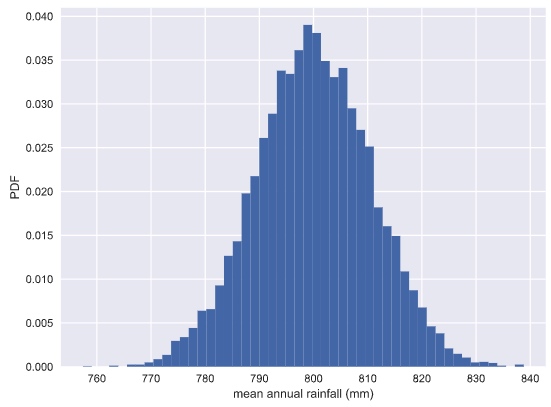

Bootstrap replicates of the mean and the SEM
Compute a bootstrap estimate of the probability density function of the mean annual rainfall at the Sheffield Weather Station. Remember, we are estimating the mean annual rainfall we would get if the Sheffield Weather Station could repeat all of the measurements from 1883 to 2015 over and over again. This is a probabilistic estimate of the mean. You will plot the PDF as a histogram, and you will see that it is Normal.
The standard deviation of this distribution, called the standard error of the mean, or SEM, is given by the standard deviation of the data divided by the square root of the number of data points. I.e., for a data set, sem = np.std(data) / np.sqrt(len(data)). Using hacker statistics, you get this same result without the need to derive it, but you will verify this result from your bootstrap replicates.
# Take 10,000 bootstrap replicates of the mean: bs_replicates
bs_replicates = draw_bs_reps(rainfall, np.mean, 10000)
# Compute and print SEM
sem = np.std(rainfall) / np.sqrt(len(rainfall))
print(sem)
# Compute and print standard deviation of bootstrap replicates
bs_std = np.std(bs_replicates)
print(bs_std)
# Make a histogram of the results
_ = plt.hist(bs_replicates, bins=50, normed=True)
_ = plt.xlabel('mean annual rainfall (mm)')
_ = plt.ylabel('PDF')
# Show the plot
plt.show()
The SEM we got from the known expression and the bootstrap replicates is the same and the distribution of the bootstrap replicates of the mean is Normal.
Calculate the confidence interval of the mean
np.percentile(bs_replicates, [2.5, 97.5])

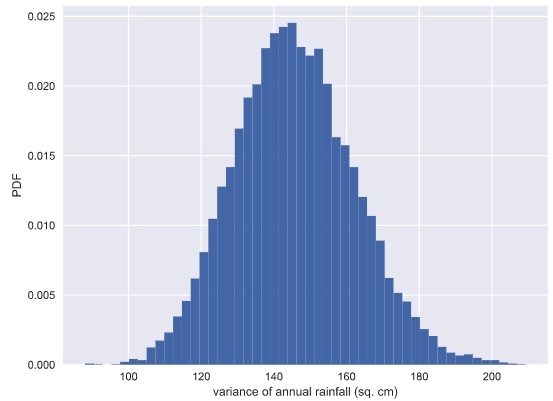

Bootstrap replicates of variance
# Generate 10,000 bootstrap replicates of the variance: bs_replicates
bs_replicates = draw_bs_reps(rainfall, np.var, 10000)
# Put the variance in units of square centimeters
bs_replicates = bs_replicates / 100
# Make a histogram of the results
_ = plt.hist(bs_replicates, bins=50, normed=True)
_ = plt.xlabel('variance of annual rainfall (sq. cm)')
_ = plt.ylabel('PDF')
# Show the plot
plt.show()
Pairs bootstrap
Like the mean of the data, the slope and intercept from the linear regression of the data are also statistics (bootstrap replicate) of the data.
Instead of bootstrapping from the 1D data, bootstrap from the index. Then select the data pairs using the bootstrap index.
def draw_bs_pairs_linreg(x, y, size=1):
"""Perform pairs bootstrap for linear regression.
output: the bootstrap replicate of slope (size length array)
bootstrap replicate of intercept (size length array)
"""
# Set up array of indices to sample from: inds
inds = np.arange(len(x))
# Initialize replicates: bs_slope_reps, bs_intercept_reps
bs_slope_reps = np.empty(size)
bs_intercept_reps = np.empty(size)
# Generate replicates
for i in range(size):
bs_inds = np.random.choice(inds, size=len(x))
bs_x, bs_y = x[bs_inds], y[bs_inds]
bs_slope_reps[i], bs_intercept_reps[i] = np.polyfit(bs_x, bs_y, 1)
return bs_slope_reps, bs_intercept_reps

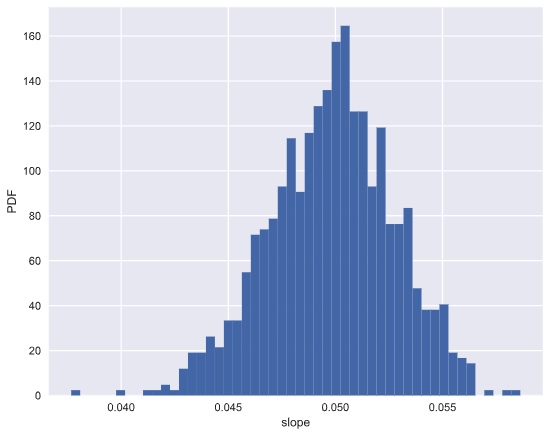

Pairs bootstrap of literacy/fertility data
# Generate replicates of slope and intercept using pairs bootstrap
bs_slope_reps, bs_intercept_reps = draw_bs_pairs_linreg(illiteracy, fertility, 1000)
# Compute and print 95% CI for slope
print(np.percentile(bs_slope_reps, [2.5, 97.5]))
# Plot the histogram
_ = plt.hist(bs_slope_reps, bins=50, normed=True)
_ = plt.xlabel('slope')
_ = plt.ylabel('PDF')
plt.show()

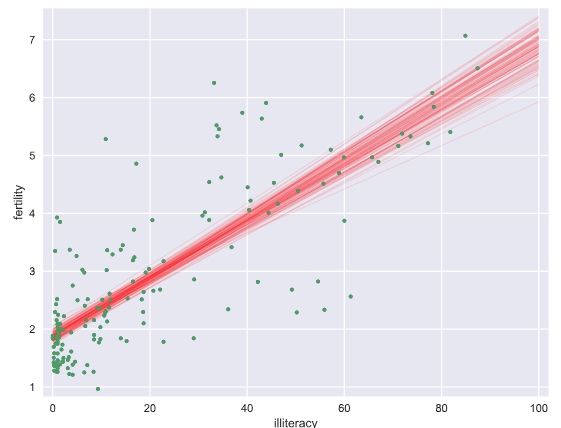

Plot bootstrap regression
# Generate array of x-values for bootstrap lines: x
x = np.array([0, 100])
# Plot the bootstrap lines
for i in range(100):
_ = plt.plot(x,
bs_slope_reps[i]*x + bs_intercept_reps[i],
linewidth=0.5, alpha=0.2, color='red')
# Plot the data
_ = plt.plot(illiteracy, fertility, marker='.', linestyle='none')
# Label axes, set the margins, and show the plot
_ = plt.xlabel('illiteracy')
_ = plt.ylabel('fertility')
plt.margins(0.02)
plt.show()
Hypothesis testing
Hypothesis testing: Assessment of how reasonable the observed data are assuming a hypothesis is true. Null hypothesis is the hypothesis that you are testing.
def permutation_sample(data1, data2):
"""Generate a permutation sample from two data sets."""
# Concatenate the data sets: data
data = np.concatenate((data1, data2))
# Permute the concatenated array: permuted_data
permuted_data = np.random.permutation(data)
# Split the permuted array into two: perm_sample_1, perm_sample_2
perm_sample_1 = permuted_data[:len(data1)]
perm_sample_2 = permuted_data[len(data1): len(permuted_data)]
return perm_sample_1, perm_sample_2
Permutation
The null hypothesis when using permutation is the two samples come from the same distribution.
We will use the Sheffield Weather Station data again, this time considering the monthly rainfall in July (a dry month) and November (a wet month). We expect these might be differently distributed, so we will take permutation samples to see how their ECDFs would look if they were identically distributed.
for _ in range(50):
# Generate permutation samples
perm_sample_1, perm_sample_2 = permutation_sample(rain_june, rain_november)
# Compute ECDFs
x_1, y_1 = ecdf(perm_sample_1)
x_2, y_2 = ecdf(perm_sample_2)
# Plot ECDFs of permutation sample
_ = plt.plot(x_1, y_1, marker='.', linestyle='none',
color='red', alpha=0.02)
_ = plt.plot(x_2, y_2, marker='.', linestyle='none',
color='blue', alpha=0.02)
# Create and plot ECDFs from original data
x_1, y_1 = ecdf(rain_june)
x_2, y_2 = ecdf(rain_november)
_ = plt.plot(x_1, y_1, marker='.', linestyle='none', color='red')
_ = plt.plot(x_2, y_2, marker='.', linestyle='none', color='blue')
# Label axes, set margin, and show plot
plt.margins(0.02)
_ = plt.xlabel('monthly rainfall (mm)')
_ = plt.ylabel('ECDF')
plt.show()

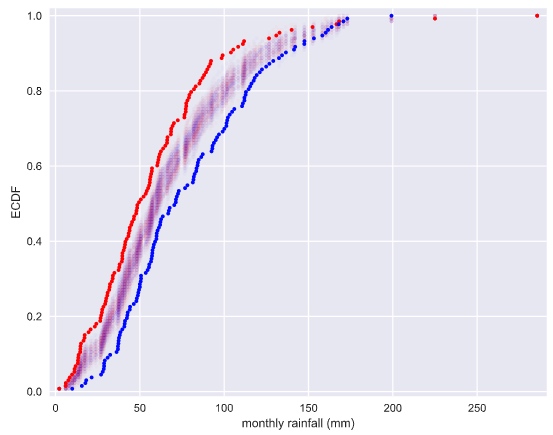

Notice that the permutation samples ECDFs overlap and give a purple haze. None of the ECDFs from the permutation samples overlap with the observed data, suggesting that the hypothesis is not commensurate with the data. July and November rainfall are not identically distributed.
p-value: the probability of obtaining a value of your test statistics that is at least as extreme as what was observed, under the assumption the null hypothesis is true.
Calculate the perm replicates(single statistics) on the permuted samples for n(n = size) times
def draw_perm_reps(data_1, data_2, func, size=1):
"""Generate multiple permutation replicates.
size is the number of permutation samples generated
"""
# Initialize array of replicates: perm_replicates
perm_replicates = np.empty(size)
for i in range(size):
# Generate permutation sample
perm_sample_1, perm_sample_2 = permutation_sample(data_1, data_2)
# Compute the test statistic
perm_replicates[i] = func(perm_sample_1, perm_sample_2)
return perm_replicates
force_aand force_b are two arrays. The goal below is to test if the distributions of force_a and force_b are identical.
def diff_of_means(data_1, data_2):
"""Difference in means of two arrays."""
# The difference of means of data_1, data_2: diff
diff = np.mean(data_1) - np.mean(data_2)
return diff
# Compute difference of mean impact force from experiment: empirical_diff_means
empirical_diff_means = diff_of_means(force_a, force_b)
# Draw 10,000 permutation replicates: perm_replicates
perm_replicates = draw_perm_reps(force_a, force_b,
diff_of_means, size=10000)
# Compute p-value: p
p = np.sum(perm_replicates >= empirical_diff_means) / len(perm_replicates)
Pipeline for hypothesis testing
- Clearly state the null hypothesis
- Define your test statistic
- Generate many sets of simulated data assuming the null hypothesis is true
- Compute the test statistic for each simulated data set
- The p-value is the fraction of your simulated data sets for which the test statistic is at least as extreme as for the real data
One sample test

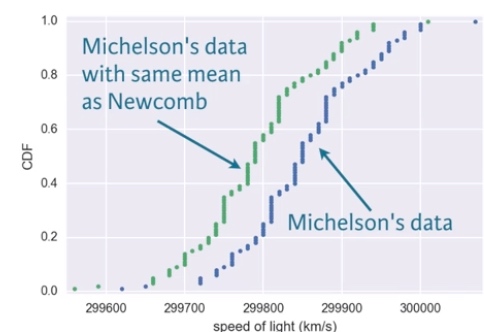

E.g. we have the dataset of Michelson's speed of light experiments (an array michelson_speed_of_light) and the reported value (mean) for Newcomb's experiment (299,860)
- Null hypothesis: the true mean speed of light in Michelson's experiments was actually Newcomb's reported value (reported mean)
- The true mean speed of light in Michelson's experiments: the mean Michelson would have gotten had he done his experiment lots and lots of time
newcomb_value = 299860
michelson_shifted = michelson_speed_of_light - np.mean(michelson_speed_of_light) + newcomb_value
1. Test statistics: the mean of the bootstrap sample minus Newcomb's value
def diff_from_newcomb(data, newcomb_value=299860):
return np.mean(data) - newcomb_value
diff_obs = diff_from_newcomb(michelson_speed_of_light)
# diff_obs = -7.59
bs_replicates = draw_bs_reps(michelson_shifted, diff_from_newcomb, 100000)
p_value = np.sum(bs_replicates <= diff_observed) / 10000
Example 2: One-sample test We know the Frog C has a tongue impact force as 0.55N. We also have the dataset for Frog B. We can't assess the hypothesis that the forces from Frog B and Frog C come from the same distribution. We can test another, less restrictive hypothesis: the mean strike force of Frog B is equal to that of Frog C. - Step1: Null hypothesis: the mean strike force of Frog B is equal to that of Frog C - Step2: The test statistics is the mean of Frog B - Step3: Generate simulated data under the null hypothesis is true
# Make an array of translated impact forces: translated_force_b
translated_force_b = force_b - np.mean(force_b) + 0.55
- Step4: Compute the test statistics for each simulated dataset
# Take bootstrap replicates of Frog B's translated impact forces: bs_replicates
bs_replicates = draw_bs_reps(translated_force_b, np.mean, 10000)
- Step5: Calculate p-value
# Compute fraction of replicates that are less than the observed Frog B force: p
p = np.sum(bs_replicates <= np.mean(force_b)) / 10000
Two-sample bootstrap hypothesis test for difference of means
If we want to test the hypothesis that Frog A and Frog B have the same mean impact force, but not necessarily the same distribution, which is also impossible with a permutation test. - Step1: null hypothesis: The means of Frog A and Frog B are equal - Step2: test statistics: the difference between the mean of Frog A and the mean of Frog B - Step3: Generate simulated data under the null hypothesis is true
# Compute mean of all forces: mean_force
mean_force = np.mean(forces_concat)
# Generate shifted arrays
force_a_shifted = force_a - np.mean(force_a) + mean_force
force_b_shifted = force_b - np.mean(force_b) + mean_force
- Step4: Compute the test statistics for each simulated dataset
# Compute 10,000 bootstrap replicates from shifted arrays
bs_replicates_a = draw_bs_reps(force_a_shifted, np.mean, 10000)
bs_replicates_b = draw_bs_reps(force_b_shifted, np.mean, 10000 )
# Get replicates of difference of means: bs_replicates
bs_replicates = bs_replicates_a - bs_replicates_b
- Step5: Calculate the p-value
p = np.sum(bs_replicates >= (np.mean(force_a) - np.mean(force_b))) / 10000
Carefully think about what question you want to ask. Are you only interested in the mean impact force, or in the distribution of impact forces?
A/B testing
A webpage is redesigned. Measure the click-through rate. We may use the permutation test. - Step1: Null hypothesis: the click-through rate is not affected by the redesign - Step2: test statistics: percentage that click-through
import numpy as np
# clickthrough_A, click_through_B: array of 1s and 0s
def diff_frac(data_A, data_B):
frac_A = np.sum(data_A) / len(data_A)
frac_B = np.sum(data_B) / len(data_B)
return frac_B - frac_A
# The difference of observed value
diff_frac_obs = diff_frac(clickthrough_A, clickthrough_B)
- Step 3: generate the simulated data under null hypothesis
- Step 4: calculate the test statistics on the simulated data
per_replicates = np.empty(10000)
for i in range(10000):
perm_replicates[i] = permutation_replicate(clickthrough_A, clickthrough_B, diff_frac)
- Step 5: calculate the p-value
p_value = np.sum(perm_replicates >= diff_frac_obs) / 10000
A/B Test steps:
- Null hypothesis: the test statistic is impervious to the change
- A low p-value implies that the change in strategy lead to a change in performance
# Construct arrays of data
dems = np.array([True] * 153 + [False] * 91)
reps = np.array([True] * 136 + [False] * 35)
Test of correlation
Pearson correlation coefficient is a measure of how much of the variability in two variables is due to them being correlated.
- Step 1: Null hypothesis: the two variables are completely uncorrelated (e.g. Obama vote share in each county and total votes in each county)
- Step 2: simulate the data assuming the null hypothesis is true
- Step 3: Pearson correlation as the test statistic
- Step 4: calculate the test statistic on the simulated data

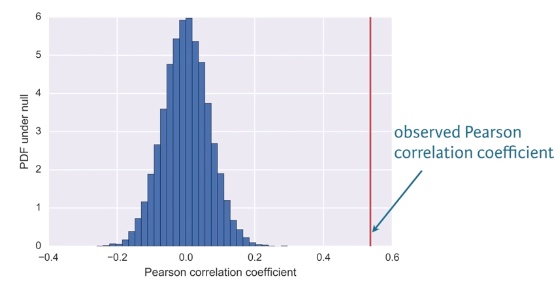

- Step 5: compute p-value as fraction of replicates that have Pearson correlation at least as large as observed Sufficient extreme
Example: female illiteracy and fertility in different countries
- Step 1: null hypothesis: the fertility of a given country is totally independent of its illiteracy
- Step 2: test statistics: Pearson correlation
- Step 3: generate simulated dataset (permute the illiteracy values but leave the fertility values fixed)
- Step 4: calculate the test statistics in simulated dataset
# Compute observed correlation: r_obs
r_obs = pearson_r(illiteracy, fertility)
# Initialize permutation replicates: perm_replicates
perm_replicates = np.empty(10000)
# Draw replicates
for i in range(10000):
# Permute illiteracy measurments: illiteracy_permuted
illiteracy_permuted = np.random.permutation(illiteracy)
# Compute Pearson correlation
perm_replicates[i] = pearson_r(illiteracy_permuted, fertility)
# Compute p-value: p
p = np.sum(perm_replicates >= r_obs)
print('p-val =', p)
- Step 5: calculate the p-value
Source
https://www.datacamp.com/courses/statistical-thinking-in-python-part-2
